产品概述 Product briefaccount

我公司生产的XLW低压电缆分接箱，适用于商业中，工业园区和城市人口密集区

域供电。用于交流50Hz，电压380V的电路中，其连接方式简单，方便，灵活，具有全

密封、耐腐蚀、免维护、安全可等性能。可节省设备和电缆投资，提高供电的安全可

靠性。

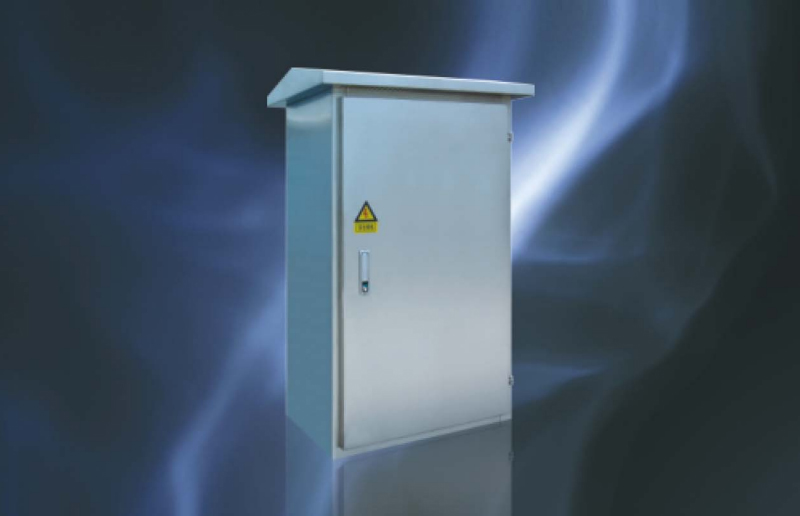

The XLW low-voltage cable junction box is suitable for power supplying in commercial

district.industry park and densely populated areaIt is used for the distributing circuit of

A.C 50Hz,380VIts connecting type is simpleeasy &nimble and it has the characteristics of

whole sealed,proof-corrosive,free-maintainsafetysaving equipments &cable, so as to

improve reliablity.

主要技术参数 Main technical data for the switchgear

额定绝缘电压

AC660V

Rated insulation voltage

额定工作电压

AC380V(50Hz)

Rated operating voltage

进线开关的额定电流

630A

Rated current ofinput switch

额定短时耐受电流

30kA

Rated short-time withstand current ofinputswitch

额定峰值耐受电流

63kA

Rated peak withstand current ofinput switch

主开关的分断能力

30kA

Breaking capacity of main switch

外壳防护等级

IP54

Protection levelofovershall
